External Low-Power LED Series

Main features

        1, Overcurrent protection, short circuit protection, open circuit protection, over-temperature protection; safety isolation, anti-lightning.

        2, With EMC, anti-electromagnetic interference.

        3, With the soft-start function.

        4, The precise constant current output, not with the input voltage, ambient temperature and working time and changes

        5, Low ripple, to ensure that the LED used in security, stability, improve the efficiency of the LED light, reduce LED light fades.

        6, High conversion efficiency not only saves energy, power itself can reduce fever, the drive power long-life.

        7, Using genuine high quality components, and can work continuously for a long time, long life.

        8, Using the global voltage range input voltage is 86 ~ 265V change, able to constantly work.




Main Indicators

1W lamp beads constant current series
Model

Input Volt

Output Volt

Output Current

Efficiency

Typical applications

KRG-C351-350

AC86~265V

DC3~11V

330mA¡À5%

>75%

(1~3)*1W

KRG-C751-350

AC86~265V

DC12~25V

330mA¡À5%

>81%

(4~7)*1W

3W lamp beads constant current series
Model

Input Volt

Output Volt

Output Current

Efficiency

Typical applications

KRG-C351-700

AC86~265V

DC3~4V

660mA¡À5%

>75%

1*3W

KRG-C851-700

AC86~265V

DC6~12V

660mA¡À5%

>81%

(2~3)*3W

SMDThe lamp beads constant current series(Examples of 20mA lamp beads)
Model

Input Volt

Output Volt

Output Current

Efficiency

Typical applications

KRG-C351-120

AC86~265V

DC15~25V

115mA¡À5%

>75%

(5 to 7) in series
6 in parallel

KRG-C451-160

AC86~265V

DC15~25V

150mA¡À5%

>76%

(5 to 7) in series
8 in parallel

KRG-C551-180

AC86~265V

DC15~25V

170mA¡À5%

>78%

(5 to 7) in series
9 in parallel

KRG-C551-200

AC86~265V

DC15~25V

190mA¡À5%

>81%

(5 to 7) in series
10 in parallel

KRG-C651-220

AC86~265V

DC15~25V

210mA¡À5%

>81%

(5 to 7) in series
11 in parallel

KRG-C851-300

AC86~265V

DC15~25V

285mA¡À5%

>81%

(5 to 7) in series
15 in parallel

Constant current dimming Series
Model

Dimming

Input Volt

Output Volt

Output Current

Typical applications

KRG-T357-350

SCR dimming

AC176~265V

DC6~11V

330mA¡À5%

(2~3)*1W

KRG-T757-350

SCR dimming

AC176~265V

DC12~25V

330mA¡À5%

(4~7)*1W

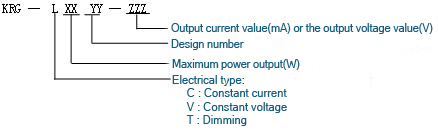

Naming convention


Models, options, accessories

Specification size
