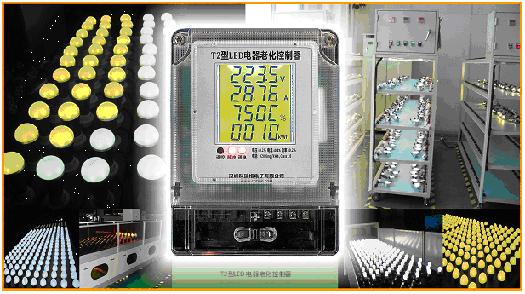

1, Real-time single-screen display of large-screen LCD with backlight the aging equipment voltage, current, power and power factor.

        2, Electric metric measurement, accurate knowledge of the aging electricity costs.

        3, 6-aging mode support aging given time, the impact of aging, mixed-aging mode.

        4, The aging of the end of the automatic power-off aging overcurrent protection.

        5, Small size, light weight, easy to install, especially suitable for the production line of the aging room, aging frame aging car use.

        6, High reliability, can resist the impact on the grid and lightning surge can be long-term continuous operation in harsh environments.

        7, The service life of 10 years, 3 years warranty.

        1, Voltage rms: 86 ~~ 265VAC ± (0.2% of reading +0.1V)

        2, Current rms : 10mA ~ 100A ± (0.2% of reading +0.2mA)

        3, Active power: 1W ~ 25kW ± (0.2% of reading +0.2W)

        4, Power factor: ± 0.002

        5, Power accuracy: Class 0.5S

        6, Over-current protection: 40A, operating time: < 600mS

Applications

        LED drivers, LED lamps and other electronic equipment aging control
