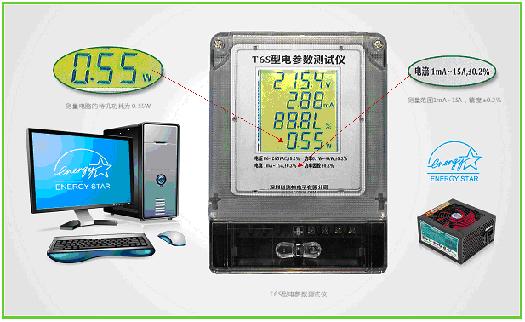

| T6/T6S Electrical Parameter Tester |
|
| Main features |
|---|
|
1, Extra-wide measuring range, 1mA ~ 15A 10mA ~~ 100A; extremely high accuracy better than ¡À 0.2% of reading.
2, Using a simple, single-screen at the same time show the most concerned about the four parameters: voltage, current, power and power factor; self-powered, working power supply without additional wiring.
3, High reliability, and can be used as a laboratory production line test instrument, also can be used as the online meter long uninterrupted continuous operation. |
|
|
| Main Indicators |
|---|
|
|
Accuracy Parameters |
|
Type |
Volt |
Current |
Power |
Power Factor |
|
T6S |
86~265VAC
¡À(0.2% reading +0.1V) |
1mA~15A
¡À(0.2% reading+0.02mA) |
0.1W~4kW
¡À(0.2% reading+0.02W) |
¡À0.002 |
|
T6 |
86~265VAC
¡À(0.2%reading+0.1V) |
10mA~100A
¡À(0.2%reading+0.2mA) |
1W~25kW
¡À(0.2%reading+0.2W) |
¡À0.002 |
|
Reliability Parameters |
|
Anti-static interference |
8kV contact, 15kV air discharge |
|
Anti-fast burst interference |
4kV common mode, 2kV differential-mode |
|
Anti-lightning surge |
4kV common mode, 2kV differential-mode |
|
Insulation Withstand Voltage |
4kV£¬1minute |
|
Service life |
Life expectancy of 10 years, 3-year warranty |
Field of application and scope
1, Energy saving and environmental protection of electrical equipment R & D or export of detection (especially suitable to measure the product of the power or standby power consumption of less than 0.5W).
2, Measurement application and the factory production lines of LED lighting appliances, commodity inspection, quality control (especially suitable for detecting standard small to 0.1W-level, large power range to a few kilowatts manufacturers).
3, metrology laboratory,Electromechanical professional students,Electrician to deal with electricity(Specially designed to meet at the same time requires high-precision measurement of small current (1mA), power (0.1W) and high current (100A), the demand for high-power (25kW). |
|
|
| Models, options, accessories |
|---|
|
 |
|
|
|
